8m Platform Height Manual Pushing Vertical Lift

Brand Name : CHEN LIFT

Model Number : ME800-1

Certification : CE; ISO; IPAF

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200units/month

Delivery Time : 7 days but asap

Packaging Details : Wrapped with Film and Packed with Pallet

Model : ME800-1

Load Capacity : 125kg

Max Platform Height : 8m

Platform Size : 0.6*0.55m

Overall Size : 1.34*0.85*2m

Lifting Motor (AC) : 0.75kw

Color : Customizable

Contact Now

8m platform height Manual Pushing Vertical Lift

ME800-1 machine is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds.

Model NO. Platform Height (m) Loading Capacity (Kg) Platform
Size (m)		 Lifting
Power (Kw)		 Weight
(Kg)		 Dimension (m)
ME600-1 6 125 0.60x0.55 0.75 260 1.34*0.85*2
ME800-1 8 125 0.60x0.55 0.75 300 1.34*0.85*2
ME900-1 9 125 0.60x0.55 0.75 326 1.45*0.85*2
ME1000-1 10 125 0.60x0.55 0.75 400 1.45*0.85*2

Upgraded Configuration

With Double Hinge Door

With Deadman Switch

Invisiable Electirc Cabinet

Electrical Wire with Number for easily maintenance

With Big Size Aluminum Material Level Gauge

With Operation Manual Storage Box

Main Features:
1. Most rigid aluminum alloy profile
2. Auxiliary platform lowering
3. Multi-guide pulley on mast
4. Durable base system
5. Chassis with level gauge
6. DC working power on the platform
7. Easily rolls through a narrow space
8. Emergency stop button
9. Over load protection
10. Built-in pressure release valve
11. Dual activated up/down switch
12. Locking Key Switch

Optional Configuration:
1. DC24V
2. Oversea Brand Hydraulic Power Pack
3. Explosion-Proof System
4. Stainless Steel Fence
5. Motorized Device

8m Platform Height Manual Pushing Vertical Lift


Product Tags:

8m Vertical Lift



Manual Pushing Vertical Lift



Manual Pushing Vertical Mast Lift


China 8m Platform Height Manual Pushing Vertical Lift wholesale

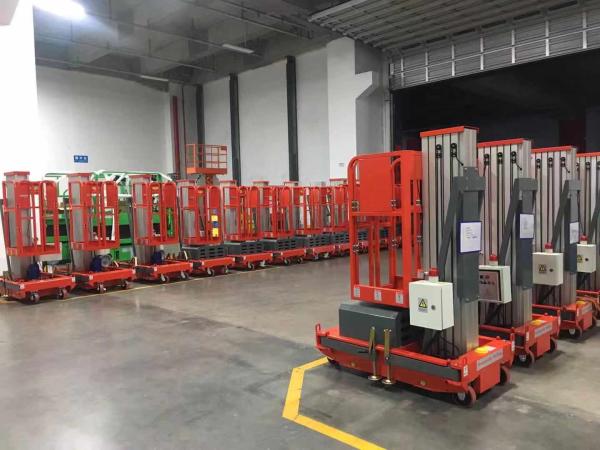

8m Platform Height Manual Pushing Vertical Lift Images
